Enhance your laboratory experiments with the high efficiency 20kHz ultrasonic homogenizer from Hanspire. Our ultrasonic homogenizer sonicator is designed to achieve ultrasonic dispersion, emulsification, and crushing tasks with ease. The rapid vibration of the tool head creates bubbles in the solution, leading to cell and particle disruption. The 20kHz ultrasonic transducer is perfect for reaction acceleration, fine particle dispersion, disruption and cell lysing, homogenization, and emulsification. With our industrial ultrasonic homogenizer, you can achieve uniform mixtures of liquids or liquid suspensions, process foods, pharmaceuticals, and cosmetics effectively. Hanspire's high power ultrasonic transducer ensures a high frequency ultrasonic wave that forms local high temperature, pressure, shock waves, and micro jets, leading to the destruction of agglomerate structures and the formation of separate particles. Our homogenizer for emulsion and laboratory experiments is reliable and efficient, providing you with the best results. Choose Hanspire as your ultrasonic homogenizer supplier and manufacturer for top-quality products that meet all your laboratory needs. Enjoy the advantages of using our ultrasonic homogenizer for your experiments and achieve superior results every time. Elevate your research with Hanspire's ultrasonic technology.

The mechanism for the generation of sonochemical effects in liquids is the phenomenon of acoustic cavitation. Our ultrasonic homogenizer uses the cavitation effect to work efficiently.

Introduction:

---

Ultrasonic homogenizer through ultrasonic cavitation reaction to achieve ultrasonic dispersion, emulsification, crushing and other tasks. The vibration of the tool head of the ultrasonic homogenizer is very rapid, causing bubbles in the surrounding solution to form and collapse rapidly, tearing cells and particles.Ultrasound is now widely used in industrial production, including making emulsions, dispersing nanoparticles and reducing the size of particles in suspension. The "cavitation" effect of ultrasonic wave in liquid forms local high temperature, high pressure or strong shock wave and micro jet, which propagates in the form of standing wave in the suspended body, causing the particles to be periodically stretched and compressed. The combination of these actions leads to the destruction of the agglomerate structure in the system, the enlargement of the particle gap and the formation of separate particles.

Application:

---

Reaction Acceleration:  cavitation accelerates chemical and physical reactions. Fine Particle

Dispersion: nanoparticle processing etc.

Disruption and Cell Lysing: will break open biological tissues and cells to extract enzymes and DNA, prepare vaccines. This technology provides a method forultrasonically lysing cells and spores in a liquid flowing continuously or intermittently through a cylindrical reactor.

Homogenization: making uniform mixtures of liquids or liquid suspensions.

Emulsification: processing foods, pharmaceuticals, and cosmetics.

Dissolution: dissolving solids in solvents.

Degassing: removing gases from solutions without heat or vacuum.

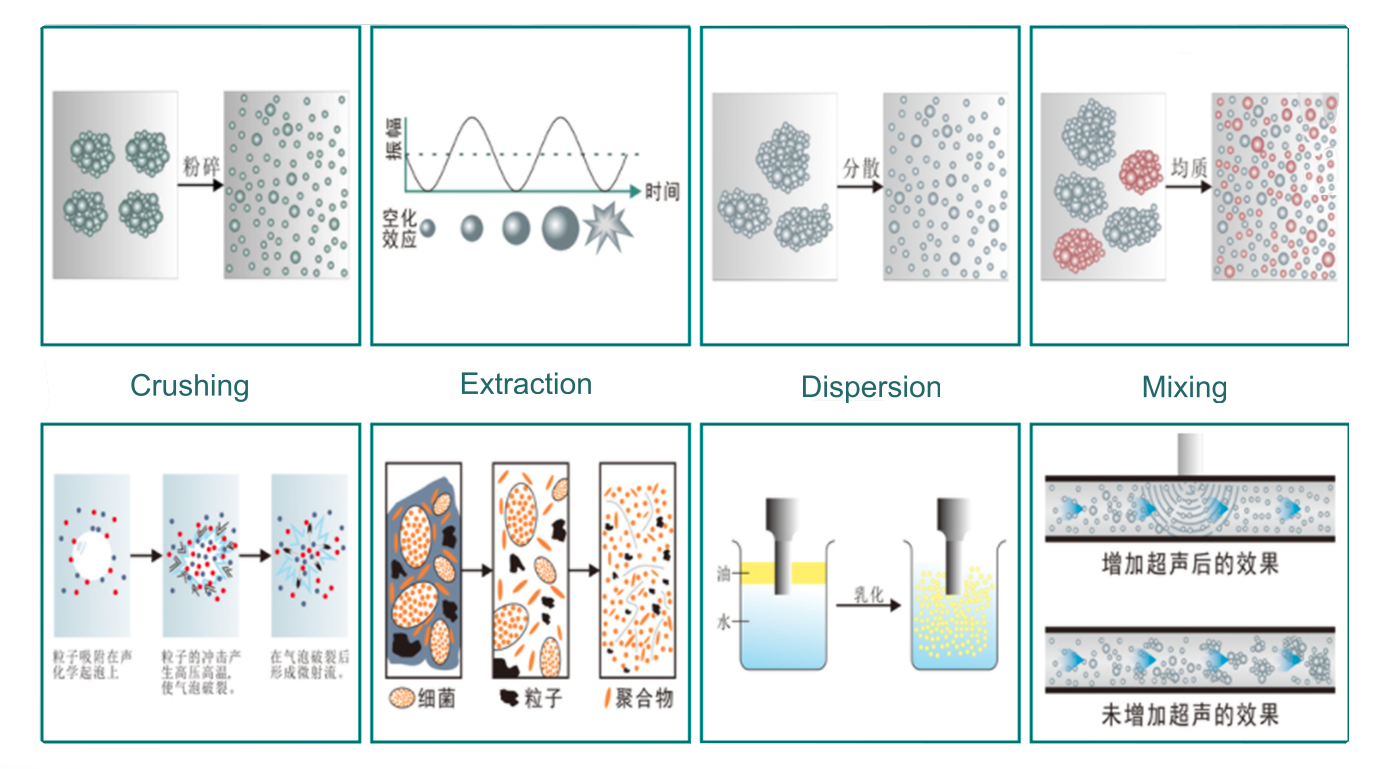

Demonstration Of The Working Performance:

---

Specifications:

---

Model	H-UH20-1000S	H-UH20-1000	H-UH20-2000	H-UH20-3000	H-UH20-3000Z
Frequency	20KHz	20KHz	20KHz	20KHz	20KHz
Power	1000 W	1000 W	2000W	3000W	3000 W
Voltage	220V	220V	220V	220V	220V
Pressure	Normal	Normal	35 MPa	35 MPa	35 MPa
Intensity of sound	>10 W/cm²	>10 W/cm²	>40 W/cm²	>60 W/cm²	>60 W/cm²
Material of probe	Titanium Alloy	Titanium Alloy	Titanium Alloy	Titanium Alloy	Titanium Alloy

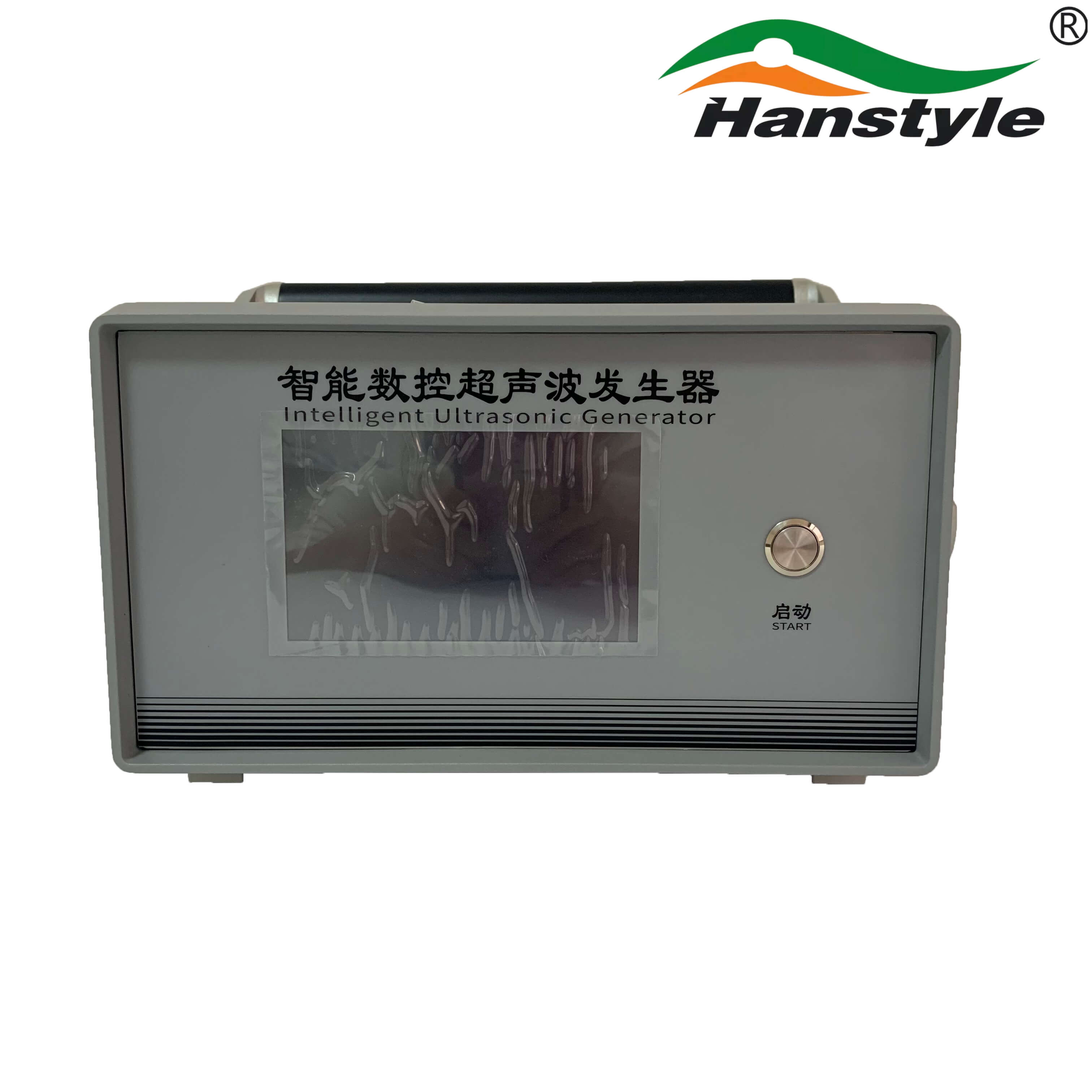

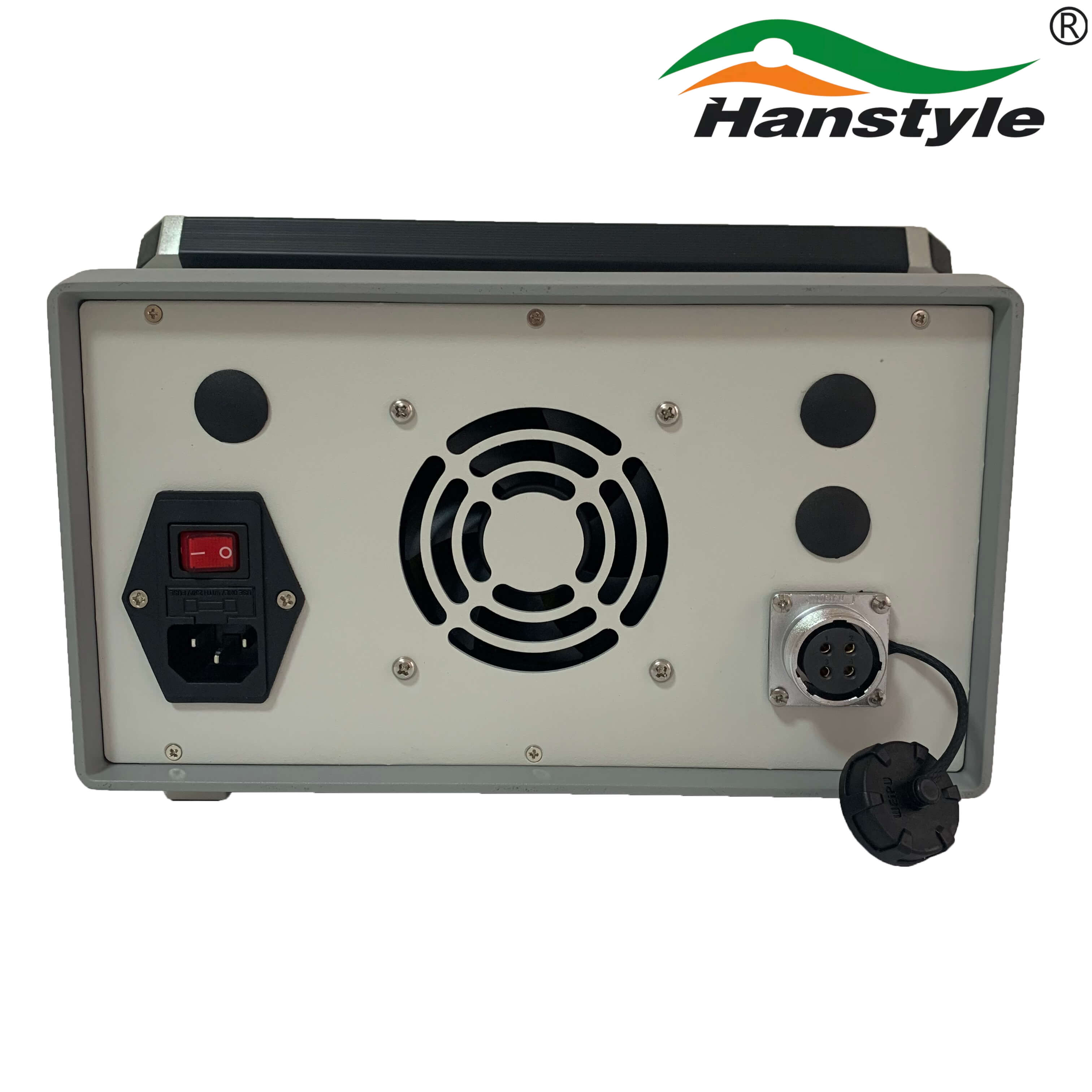

Generator	Digital type	Digital type	Digital type	Digital type	Digital type

Advantage:

---

Increase the extraction rate of the extracted components and shorten the extraction timeReduce energy consumption and improve economic efficiencyNo heating is required during the extraction process, suitable for the extraction of heat-sensitive substancesCompared with the traditional mixing and ball milling process, the operation cost per unit capacity can be greatly reduced. It is especially suitable for industrial production.For liquid-liquid mixture, the chemical reaction speed can be increased, the amount of additives can be reduced, and the fully mixed solution is not suitable for stratification for a long time.For the solid-liquid mixture, the easily agglomerated nanoparticles can be opened in a short time, and the dispersed ultrafine particles are not easy to agglomerate again.

Comments From Clients：

---

Payment & Shipping:

---

Minimum Order Quantity	Price（USD）	Packaging Details	Supply Ability	Delivery Port
1 Piece	1300~2800	normal export packaging	50000pcs	Shanghai



With Hanspire's innovative ultrasonic homogenizer, collagen extraction becomes a seamless process. Our advanced technology utilizes ultrasonic cavitation reactions to break down collagen molecules, resulting in high-quality extracts for research and testing purposes. The 20kHz frequency ensures efficient dispersion and emulsification, while also offering the ability to customize crushing tasks for specific applications. Experience the power of ultrasonic sonochemistry with Hanspire's reliable and efficient homogenizer. Whether you're working in a research lab or a pharmaceutical production facility, our equipment is designed to streamline collagen extraction processes and enhance overall productivity. Trust Hanspire as your go-to supplier for high-quality ultrasonic technology, and revolutionize the way you approach laboratory tasks.
