Introducing our high efficiency 20KHz ultrasonic welding system, perfect for tube sealing machine and mask machine applications. Our ultrasonic transducer, cutter, welding service, nylon welding, transducer, converter, welding machine, sealing machine, and bag sealing machine are designed to provide strong product protection and reduce costs and waste in the manufacturing process. With Hanspire, you can experience reduced energy consumption, material savings, and increased equipment availability, allowing for more sustainable and profitable production. Ultrasonic welding technology is recognized as an attractive alternative to traditional sealing methods, offering high frequency vibrations per second to effectively bond materials. Our 20KHz ultrasonic transducer and welding systems have been widely used in various industrial production fields, offering efficient and reliable solutions for your welding needs. Discover the advantages of Hanspire's ultrasonic technology and enhance your production processes with our top-quality products.

Ultrasonic welding is a welding method that does not require natural ventilation equipment to control smoke, which is more convenient than traditional welding, and has fast cooling and smokeless characteristics.

Introduction:

---

Ultrasonic welding is the principle of fusing two molecular layers between the surfaces of objects that need to be welded by rubbing against each other. Ultrasonic welding technology is one possibility that enables manufacturers to reduce both costs and product waste while providing strong product protection. Reduced energy consumption, material savings and increased equipment availability allow manufacturers to produce more sustainably and profitable. In comparison to other sealing methods used to date, such as hot and cold sealing, ultrasonic technology represents an attractive alternative.

Ultrasonic welding is the conversion of 50/60 Hz current into 15, 20, 30 or 40 KHz electrical energy by means of an ultrasonic generator. The converted high frequency electrical energy is converted again into tens of thousands of high frequency vibrations per second through the transducer, and then the high frequency vibration is transmitted to the welding head through a set of amplitude changing rod devices.   The welding head transmits the received vibration energy to the joint of the workpiece to be welded, and in this area, the vibration energy is converted into heat energy by friction, and the surface of the object to be welded is melted, so as to complete effective bonding.   Nowadays, ultrasonic welding has been widely used in many industrial production fields, and ultrasonic welding is also recognized and used by more and more groups.

Application:

---

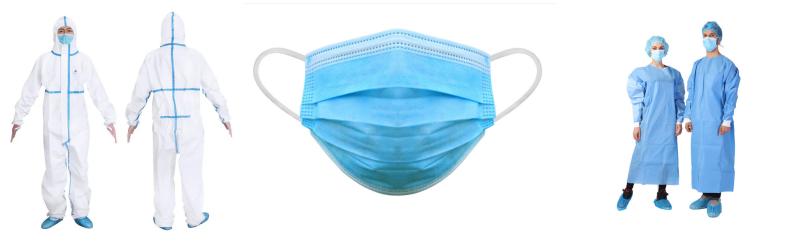

Ultrasonic welding are generally used for secondary connection processing of plastic parts, especially for thermoplastic materials, with processing processes such as riveting, spot welding, embedding, and cutting. It’s been widely used in the clothing industry, trademark industry, automotive industry, plastic electronics, household goods industry, and so on.

Specifically, in the clothing industry, there are pre knitting processes for underwear and underwear, elastic webbing, and welding of non-woven soundproofing felt, which can be used for spot drilling; Trademark industry: weaving marking tapes, printing marking tapes, etc; Automotive industry: soundproofing cotton for door panels, manual transmission sleeves, wiper seats, engine covers, water tank covers, instrument panels, bumpers, rear partitions, car floor mats, etc; Plastic electronics: small plastic parts riveting, etc; Household goods industry: fiber cotton spot welding, etc.

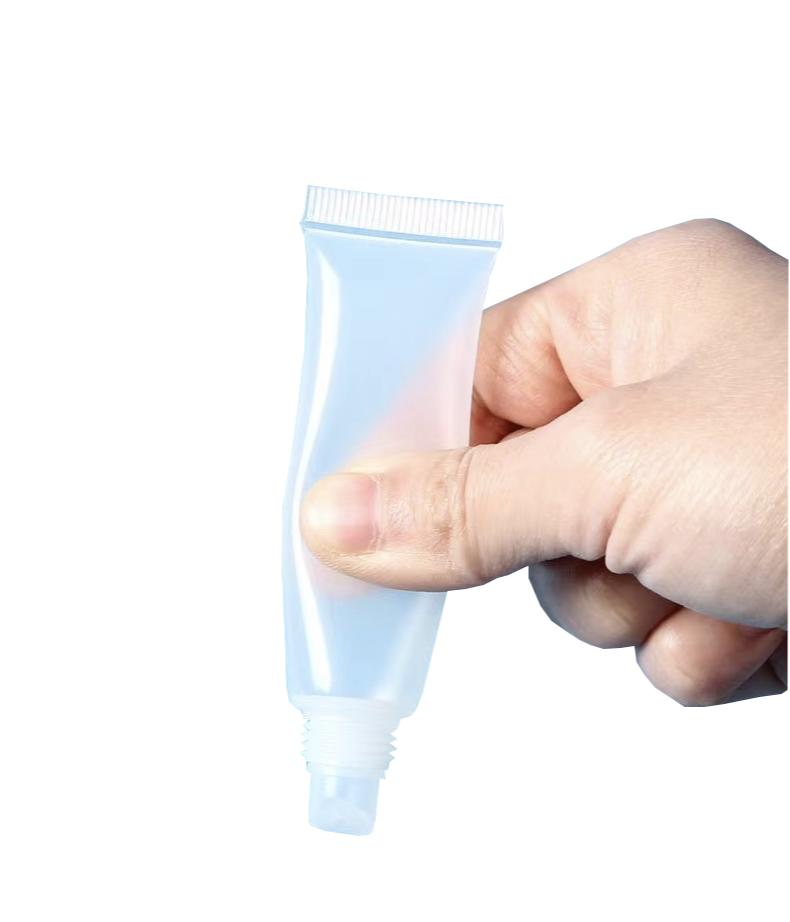

Demonstration Of The Working Performance:

---

Specifications:

---

	Ultrasonic Transducer	Ultrasonic Generator
Model	H-5020-4Z	H-UW20
Ultrasonic Frequency	20KHz ± 0.5KHz	20KHz ± 0.5KHz
Ultrasonic Power	2000Watt	2000Watt
Ultrasound Wave	-	Continuous / Intermittent
Capacitance	11000±10%pF
Resistance	≤10Ω
Storage Temperature	75ºC	0~40ºC
Working Area	-5ºC~	-5ºC~ 40ºC
Size	110*20mm
Weight	8Kg	9Kg
Power Supply	-	220V, 50/60Hz, 1 Phase

Advantage:

---

1.Energy saving and environmental protection The use of ultrasonic energy for welding can eliminate the additives such as glue and adhesive, reduce environmental pollution and save unnecessary power and energy consumption. 2.Heat and smoke exhaust system without natural ventilation equipment Ultrasonic welding is a kind of welding method that does not use natural ventilation equipment to control smoke. It is more convenient than traditional welding, with fast cooling and smoke-free. 3.High efficiency and low cost High efficiency and low cost have always been the effect pursued by enterprises. Ultrasonic welding not only saves raw materials, but also improves productivity. Therefore, it is a key factor for many enterprises to choose. 4.Convenient completion of automatic operation Ultrasonic welding is different from the previous welding method. It does not need special supervision. It uses the computer motherboard to complete the automatic welding operation. It is not difficult for one person to control multiple automatic welding machines at the same time. 5.Good welding characteristics, very strong Ultrasonic can complete seamless welding and reduce the welding interface, so the stability is very good. The welding points are beautiful, can complete seamless welding, and have good waterproof and sealing performance!

Comments From Clients：

---

Payment & Shipping:

---

Minimum Order Quantity	Price（USD）	Packaging Details	Supply Ability	Delivery Port
1 Piece	480 ~ 2800	normal export packaging	50000pcs	Shanghai
