Are you looking for a high precision rotary ultrasonic sewing machine for making fine work? Look no further than Hanspire! Our ultrasonic sewing machines use cutting-edge technology to stitch thermoplastic fabrics seamlessly, offering superior strength and sealing compared to traditional sewing methods. With a focus on innovation and quality, Hanspire is a leading manufacturer of ultrasonic sewing machines, high power ultrasonic transducers, high frequency ultrasonic transducers, and high frequency ultrasonic sensors. Our machines are designed to meet the needs of various applications, including surgical gown sewing. Experience the benefits of our rotary ultrasonic sewing machines, such as fast stitching speed, high suture strength, and no needles required. Say goodbye to fabric deformation and wrinkling with our unique rotary ultrasonic horn design, which radiates 360° outward for uniform stitching. Choose Hanspire for reliable and efficient ultrasonic sewing solutions. Contact us today to learn more about our products and how they can improve your sewing processes.

Modern ultrasonic radial wave sewing machines are a flexible and versatile device that is easy to use and an effective method for producing high-quality results. It can ensure high accuracy and constant amplitude values, especially suitable for high-speed production and processing of sensitive materials.



Introduction:

---

Traditional sewing machines stitch two pieces of cloth together by threading a needle, in which not only the fabric is punctured but there is no bond between the cloth, but they are tied together by a thin thread. In this way, the cloth is easy to be pulled and the thread is easy to break. For some thermoplastic fabrics, traditional sewing machines have no way to make them stitch perfectly. Ultrasonic seamless sewing machine can stitch most of the thermoplastic cloth, comparing with ordinary needle and thread suturing, ultrasonic sewing machine has the characteristics of no needles, high suture strength, good sealing, fast suture speed and so on.

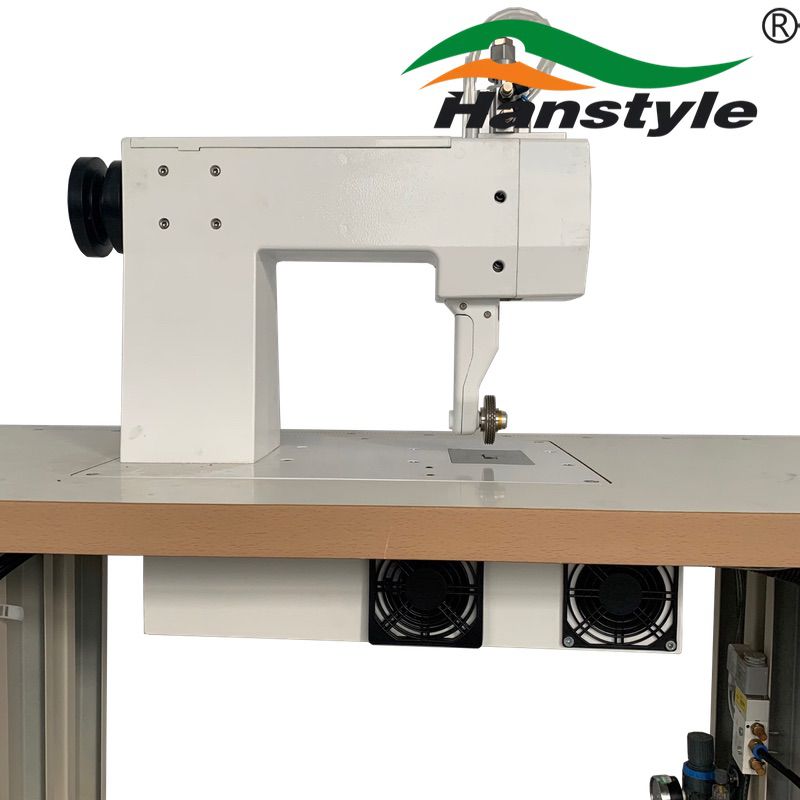

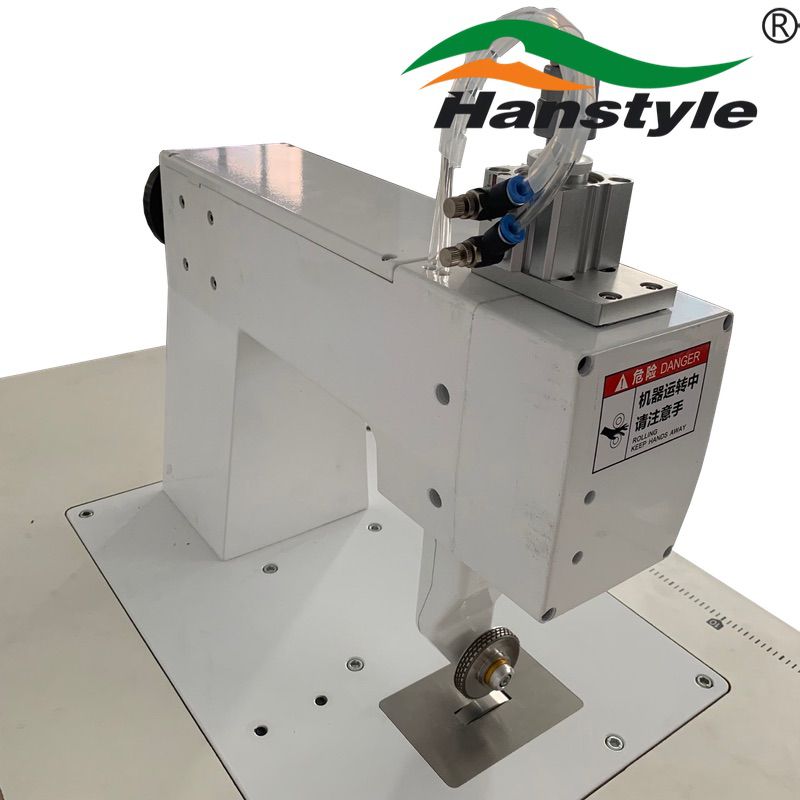

The core technology of the ultrasonic wireless sewing machine is the use of rotary ultrasonic horn for roll welding, which cleverly converts the longitudinal vibration of the transducer into radial vibration radiating 360° outward in the direction of diameter. And different from the traditional ultrasonic lace machine, the traditional ultrasonic lace machine is generally composed of a flat ultrasonic horn and a roller with a pattern, because the ultrasonic horn(tool head) is static, it is easy to cause fabric deformation and wrinkling phenomenon when working, and the rolling welding type seamless sewing equipment by two discs to vibrate to sew the fabric, which solves this problem well. This not only greatly reduces the volume of the vibration system itself, but also greatly reduces the installation size, with classical appearance, the whole machine is beautiful, it also completely solves the problem of inconsistency and asynchrony between the movement direction of the ultrasonic welding head and the movement direction of the fabric.

Application:

---

Apply to lace clothing, ribbon,trim,Filter, Lacing and quilting,decoration products, handkerchief, tablecloth, curtain, bedspread, pillowcase, quilt cover, tent, raincoat, disposable operating coat and hat, disposable mask, non-woven fabric bags and so on.





Demonstration Of The Working Performance:

---



Specifications:

---

Model No:	H-US15/18	H-US20A	H-US20D	H-US28D	H-US20R	H-US30R	H-US35R
Frequency:	15KHz / 18KHz	20KHz	20KHz	28KHz	20KHz	30KHz	35KHz
Power:	2600W / 2200W	2000W	2000W	800W	2000W	1000W	800W
Generator:	Analog / Digital	Analog	Digital	Digital	Digital	Digital	Digital
Speed(m/min):	0-18	0-15	0-18	0-18	50-60	50-60	50-60
Melting Width(mm):	≤80	≤80	≤80	≤60	≤12	≤12	≤12
Type:	Manual / Pneumatic	Pneumatic	Pneumatic	Pneumatic	Pneumatic	Pneumatic	Pneumatic
Motor control mode:	Speed board / Frequency converter	Speed board	Frequency converter	Frequency converter	Frequency converter	Frequency converter	Frequency converter
Number of Motors:	Single / Double	Single / Double	Single / Double	Single / Double	Double	Double	Double
Horn Shape:	Round / Square	Round / Square	Round / Square	Round / Square	Rotary	Rotary	Rotary
Horn Material:	Steel	Steel	Steel	Steel	High Speed Steel	High Speed Steel	High Speed Steel
Power supply:	220V/50Hz	220V/50Hz	220V/50Hz	220V/50Hz	220V/50Hz	220V/50Hz	220V/50Hz
Dimensions:	1280*600*1300mm	1280*600*1300mm	1280*600*1300mm	1280*600*1300mm	1280*600*1300mm	1280*600*1300mm	1280*600*1300mm



Advantage:

---

1. There is no speed difference between the upper and lower wheels or the speed difference is extremely small. The speed of the flower wheel and the lower mold are stepless adjustment of multiple turns, which makes the speed adjustment range wider, which is more conducive to the adjustment and tracking of speed parameters in the production process, and greatly improves the output. 2. Lighter weight. Compared to conventional sutures, the weight of the machine with seamless stitching is reduced. 3. Strong and stretchable. Seamless thread bonding is 40% less restrictive than sewing seams and has excellent stretch and recovery. That means more freedom of movement, more comfort and fewer distractions. The seamless bond is as strong as the stitching, and the fabric is softer. 4. Sealed and waterproof. Ultrasonic stitching enhances the water resistance of the garment. Because it is bonded, there are no pinholes to allow water to penetrate. At the same time, due to the absence of pinholes, the stitching technology also improves the tightness of the material. 5. Cost saving. Ultrasonic seamless stitching technology can be used on fabrics containing large amounts of thermoplastic fibers. This technology is less wasteful because it does not require needles, threads, solvents, adhesives or mechanical fasteners. There is no limit to the stitching speed and there is no need to worry about re-shuttling the bobbin or replacing the spool.

 Comments From Clients：

---



Payment & Shipping:

---

Minimum Order Quantity	Price（USD）	Packaging Details	Supply Ability	Delivery Port
1 Unit	980~5980	normal export packaging	50000pcs	Shanghai



Traditional sewing machines pale in comparison to the advanced technology of our ultrasonic cutting and sealing machine. By utilizing ultrasonic vibrations, this machine seamlessly bonds fabric together without the need for additional stitching. Say goodbye to uneven seams and hello to flawless, high-quality results. With Hanspire as your supplier, you can trust in the durability and reliability of our innovative products. Elevate your sewing experience with our cutting-edge rotary ultrasonic sewing machine today.
