The Laminating machine with PET or Bopp film as the material as usual, can be widely used in packing box, food box, books, drawings, advertisements, certificates and so on, the printing after the film waterproof, durable, clear pattern.

Introduction:

---

Our Hanspire double-sided laminating machine is developed relying on its own technical advantages and market demand.It can work with single side,double sides,cold film and foils as well.Multifunctional design, simple operation, stable mechanical performance and careful after-sales service, committed to bring you satisfactory use experience.   Different functions could be choosed, hydraulic pressure, auto lapping,auto breaking, collect in roll, auto feed system is optional too.

Demonstration Of The Working Performance:

---

Specifications:

---

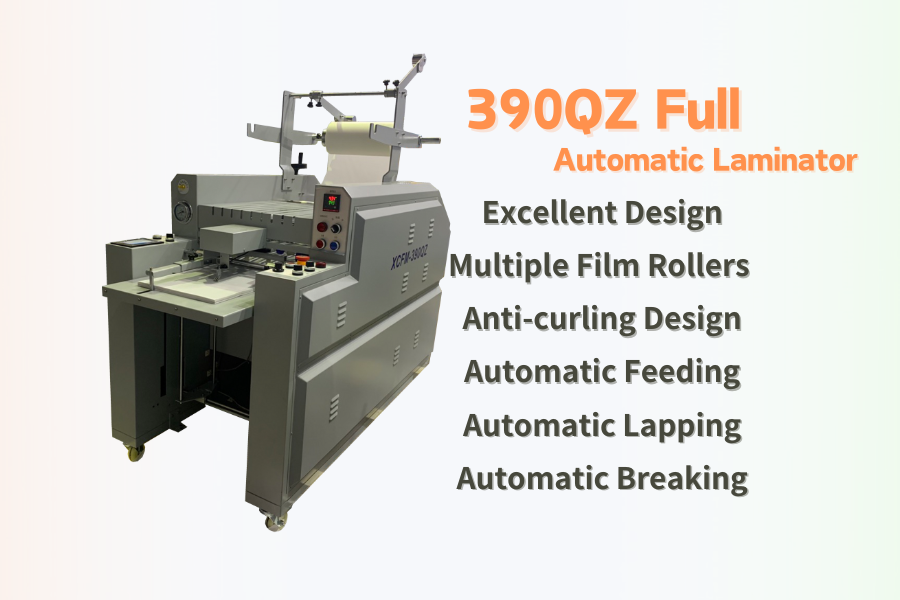

Model	390QZ Hydraulic Laminator
Applicable Laminating Width	250-380mm
Applicable Laminating Length	340-470mm
Max. Film Diameter	260mm
Applicable Paper	128-250g
Max. Laminating Speed	0-5000mm/min
Max. Laminating Temperature	140℃
Display	LED Display
Drive Motor	AC Motor
Electricity Supply	220V/50Hz
Heating Power	1500W
Motor Power	250W
Machine Size (L x W x H)	1820×825×1245mm
Weight	300kg
Dia.of Steel Roller	120mm
Pressure Method	Electrical Hydraulic
Mold Core Size	3 inches
Max. Paper Loading Thickness	300mm

Advantage:

---

1.Both workable for Hot and Cold Laminating 2.LED display,Easy operation for different functions 3.Yellow safety cover , protect your hands 4.Install large diameter film roll, reduce times for change film 5.Anti-curl technology, keep your paper flat. 6.Hydraulic pressrue control 7.Conveyor Belt, Feed paper easily 8.Auto winding, rolling up laminated paper well 9.Pneumatic auto lapping, Pneumatic auto breaking 10.Auto paper feed system is optional

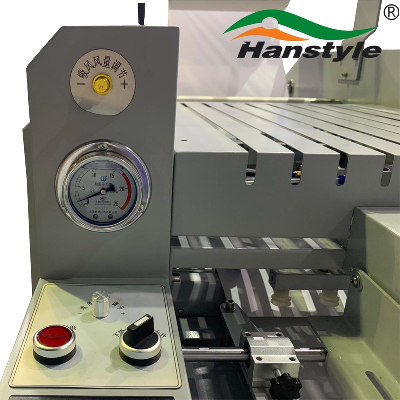

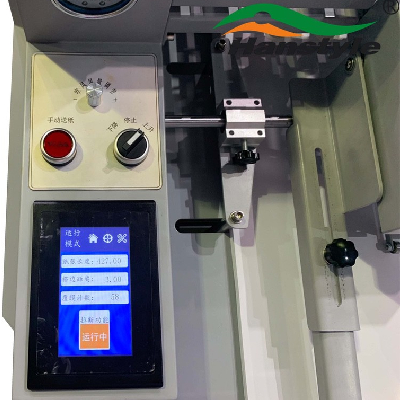

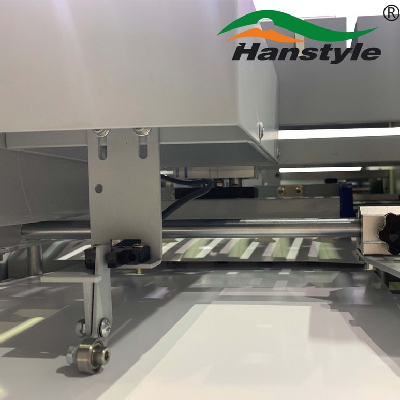

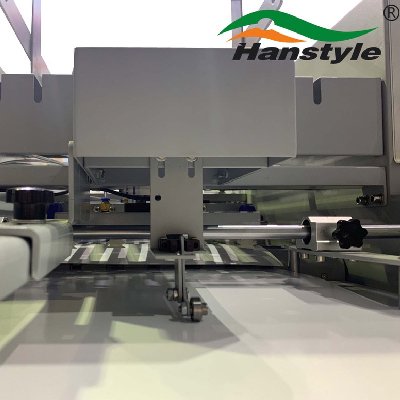

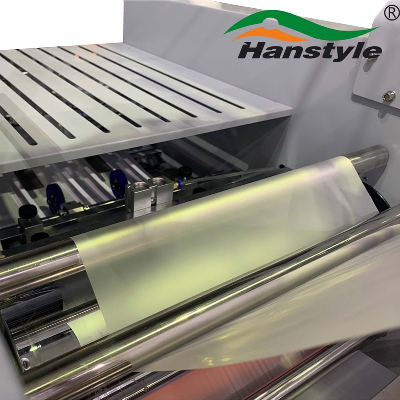

Details Display：

---

Payment & Shipping:

---

Minimum Order Quantity	Price（USD）	Packaging Details	Supply Ability	Delivery Port
1 Piece	5000~5800	normal export packaging	50000pcs	Shanghai
